Engineering Class Steel Bushed Rollerless Chains

Engineering Class Steel Bushed Rollerless Chains provide excellent service in severe working conditions like gritty or abrasive conditions (i.e., bucket elevators and other challenging conveying applications). Steel Bushed Chains are also used to replace combination chains when installations are modified to handle heavier loads or operating conditions become more severe. A variety of attachments like A1, A2, K1, K2, K3 are also available on request.

THC Chain #	P	b1	d1	d2	h2	T	Lc	UTS (kN)	Wt. (kg/m)
S188	66.27	25.60	22.40	12.78	30.00	6.40	68.60	111.3	1.72
S131	78.11	31.70	32.50	15.95	39.60	9.70	90.50	178.0	3.40
S102B	101.60	51.30	25.40	15.95	39.60	9.70	111.30	178.0	3.13
S102-1/2	102.62	57.15	35.05	19.05	44.45	9.65	120.65	222.5	4.26
S111	120.90	63.20	36.60	19.13	52.30	9.70	131.20	222.5	4.63
S111SP	120.90	66.80	36.58	19.05	50.80	9.65	128.52	222.5	3.99
S110	152.40	51.30	32.50	15.95	39.60	9.70	111.30	178.0	2.86
4856	152.40	76.20	44.45	25.40	63.50	12.70	155.70	645.3	7.48
4857	152.40	76.20	44.45	25.40	82.55	12.70	155.70	778.8	9.53
4859	152.40	95.25	60.45	31.75	101.60	16.00	187.45	1,223.8	15.42
S150	153.67	80.00	44.70	25.48	66.60	12.70	164.30	378.0	-
4864	177.80	95.25	60.45	31.75	101.60	16.00	187.45	1,223.8	14.06

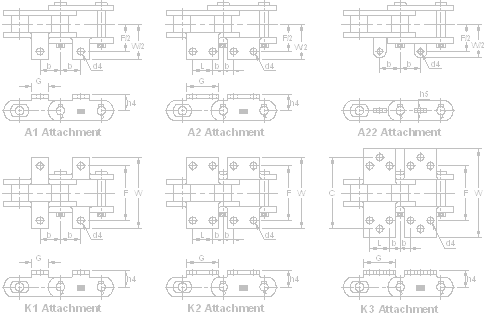

Steel Bushed Rollerless Chains with Attachments

Other steel bushed chains: 20001, 30702, 30703, 825, US850, 830, 844, 844X, 6826, US7038
