THC brand Welded Steel Drag Chains are built in accordance with ISO 6971 and ANSI B29.18M. Products provide efficient and economical service when used in chip and sawdust conveyors, and like applications. Reverse barrel is available. Attachments includes C1, C3, C4, RR and Wing.

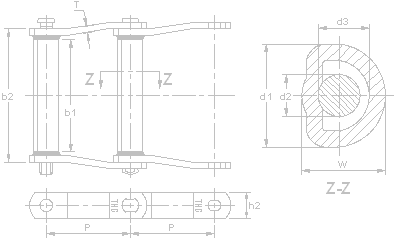

Welded Steel Drag Chain

THC Chain # THC Chain # P b1 b2 d1 d2 h2 T Lc UTS (WD; kN) UTS (WDH; kN) Wt. (kg/m)
WD102 WDH102 127.0 162.1 197.1 39.1 19.13 38.12 9.7 245.4 170 245 17.9
WD104 WDH104 152.4 104.6 136.9 39.1 19.13 38.12 9.7 181.4 170 245 12.1
WD110 WDH110 152.4 228.6 263.9 39.1 19.13 38.12 9.7 308.6 170 245 17.8
WD112 WDH112 203.2 228.6 263.9 39.1 19.13 38.12 9.7 308.6 170 245 14.2
WD113 WDH113 152.4 228.6 270.3 39.1 22.30 38.12 12.7 322.3 213 253 22.7
WD116 WDH116 203.2 330.2 359.2 45.2 19.13 45.21 9.7 405.9 244 262 20.6
WD118 WDH118 203.2 336.6 378.2 51.8 22.30 51.80 12.7 431.1 311 351 27.9
WD122 WDH122 203.2 222.3 260.6 51.8 22.30 51.80 12.7 314.5 311 351 22.8
WD480 WDH480 203.2 282.4 324.1 51.8 22.30 51.80 12.7 378.0 311 351 25.5

WD: welded steel drag chain
WDRS: welded steel drag chain with heat-treated rivets and sidebars
WDH: welded steel drag chain with heat-treated rivets, sidebar and barrels
WDR-1SH: super hog drag chain; This welded steel drag chain incorporates a formed barrel of heavy wall seamless tubing. Ideal for severe loads in chip dump or hog conveyors.
WDRS-1WH: whole hog drag chain has the same rugged characteristics as the super hog drag chain. The main difference is the barrel is extra heavy, round, packed with the same oversize, greased rivet.
WDXHD: welded steel drag extra heavy duty

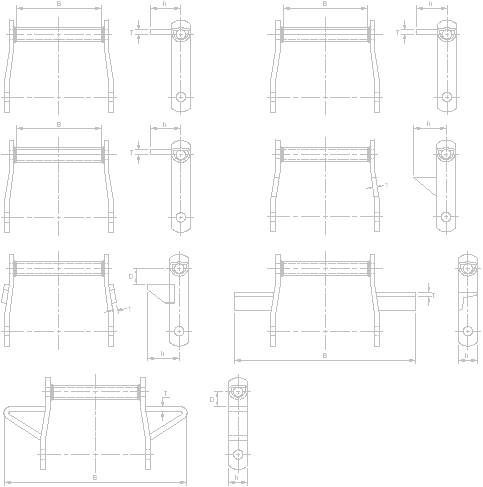

Welded Steel Drag Chains with Attachments
Welded Steel Drag Chains with Attachments
